Write your first model - simple RBC
This tutorial walks through the steps of writing down a model and analysing it. Prior knowledge of DSGE models and their solution in practical terms (e.g. having used a mod file with dynare) is useful in understanding this tutorial. For the purpose of this tutorial a simplified version of a real business cycle (RBC) model is used. The model laid out below examines capital accumulation, consumption, and random technological progress. Households maximise lifetime utility from consumption, weighing current against future consumption. Firms produce using capital and a stochastic technology factor, setting capital rental rates based on marginal productivity. The model integrates households' decisions, firms' production, and random technological shifts to understand economic growth and dynamics.
RBC - derivation of model equations
Household's Problem: Households derive utility from consuming goods and discount future consumption. The decision they face every period is how much of their income to consume now versus how much to invest for future consumption.
\[E_0 \sum_{t=0}^{\infty} \beta^t \ln(c_t)\]
Their budget constraint reflects that their available resources for consumption or investment come from returns on their owned capital (both from the rental rate and from undepreciated capital) and any profits distributed from firms.
\[c_t + k_t = (1-\delta) k_{t-1} + R_t k_{t-1} + \Pi_t\]
Combining the first order (optimality) conditions with respect to $c_t$ and $k_t$ shows that households balance the marginal utility of consuming one more unit today against the expected discounted marginal utility of consuming that unit in the future.
\[\frac{1}{c_t} = \beta E_t \left[ (R_{t+1} + 1 - \delta) \frac{1}{c_{t+1}} \right]\]
Firm's Problem: Firms rent capital from households to produce goods. Their profits, $\Pi_t$, are the difference between their revenue from selling goods and their costs from renting capital. Competition ensures that profits are 0.
\[\Pi_t = q_t - R_t k_{t-1}\]
Given the Cobb-Douglas production function with a stochastic technology process:
\[q_t = e^{z_t} k_{t-1}^{\alpha}\]
The FOC with respect to capital $k_{t}$ determines the optimal amount of capital the firm should rent. It equates the marginal product of capital (how much additional output one more unit of capital would produce) to its cost (the rental rate).
\[R_t = \alpha e^{z_t} k_{t-1}^{\alpha-1}\]
Market Clearing: This condition ensures that every good produced in the economy is either consumed by households or invested to augment future production capabilities.
\[q_t = c_t + i_t\]
With:
\[i_t = k_t - (1-\delta)k_{t-1}\]
Equations describing the dynamics of the economy:
- Household's Optimization (Euler Equation): Signifies the balance households strike between current and future consumption. The rental rate of capital has been substituted for.
\[\frac{1}{c_t} = \frac{\beta}{c_{t+1}} \left( \alpha e^{z_{t+1}} k_t^{\alpha-1} + (1 - \delta) \right)\]
- Capital Accumulation: Charts the progression of capital stock over time.
\[c_t + k_t = (1-\delta)k_{t-1} + q_t\]
- Production: Describes the output generation from the previous period's capital stock, enhanced by current technology.
\[q_t = e^{z_t} k_{t-1}^{\alpha}\]
- Technology Process: Traces the evolution of technological progress. Exogenous innovations are captured by $\epsilon^z_{t}$.
\[z_{t} = \rho^z z_{t-1} + \sigma^z \epsilon^z_{t}\]
Define the model
The first step is always to name the model and write down the equations. Taking the RBC model described above this would go as follows.
First, the package is loaded and then the @model macro is used to define the model. The first argument after @model is the model name and will be the name of the object in the global environment containing all information regarding the model. The second argument to the macro are the equations, which are written down between begin and end. One equation per line and timing of endogenous variables are expressed in the square brackets following the variable name. Exogenous variables (shocks) are followed by a keyword in square brackets indicating them being exogenous (in this case [x]). Note that names can leverage julias unicode capabilities (alpha can be written as α).
julia> using MacroModellingjulia> @model RBC begin 1 / c[0] = (β / c[1]) * (α * exp(z[1]) * k[0]^(α - 1) + (1 - δ)) c[0] + k[0] = (1 - δ) * k[-1] + q[0] q[0] = exp(z[0]) * k[-1]^α z[0] = ρᶻ * z[-1] + σᶻ * ϵᶻ[x] endModel: RBC Variables Total: 4 Auxiliary: 0 States: 2 Auxiliary: 0 Jumpers: 2 Auxiliary: 0 Shocks: 1 Parameters: 5
After the model is parsed some info on the model variables, and parameters are displayed.
Define the parameters
Next the parameters of the model need to be added. The macro @parameters takes care of this:
julia> @parameters RBC begin σᶻ= 0.01 ρᶻ= 0.2 δ = 0.02 α = 0.5 β = 0.95 endRemove redundant variables in non-stochastic steady state problem: 0.837 seconds Set up non-stochastic steady state problem: 16.559 seconds Find non-stochastic steady state: 0.251 seconds Take symbolic derivatives up to first order: 1.206 seconds Model: RBC Variables Total: 4 Auxiliary: 0 States: 2 Auxiliary: 0 Jumpers: 2 Auxiliary: 0 Shocks: 1 Parameters: 5
Parameter definitions are similar to assigning values in julia. Note that one parameter definition per line is required.
Given the equations and parameters, the package will first attempt to solve the system of nonlinear equations symbolically (including possible calibration equations - see next tutorial for an example). If an analytical solution is not possible, numerical solution methods are used to try and solve it. There is no guarantee that a solution can be found, but it is highly likely, given that a solution exists. The problem setup tries to incorporate parts of the structure of the problem, e.g. bounds on variables: if one equation contains log(k) it must be that k > 0. Nonetheless, the user can also provide useful information such as variable bounds or initial guesses. Bounds can be set by adding another expression to the parameter block e.g.: c > 0. Large values are typically a problem for numerical solvers. Therefore, providing a guess for these values will increase the speed of the solver. Guesses can be provided as a Dict after the model name and before the parameter definitions block, e.g.: @parameters RBC guess = Dict(k => 10) begin ... end.
Delayed parameter definition
Not all parameters need to be defined in the @parameters macro. Calibration equations (using the | syntax) and parameters defined as functions of other parameters must be declared here, but simple parameter value assignments (e.g., α = 0.5) can be deferred and provided later by passing them to any function that accepts the parameters argument (e.g., get_irf, get_steady_state, simulate).
Parameter ordering: When some parameters are not defined upfront, the parameter vector is ordered as follows: declared parameters come first (in their declaration order), followed by missing parameters (in alphabetical order). This matters when passing parameter values by position rather than by name.
The example above with delayed parameter definition would work as follows. The model is defined as before:
julia> using MacroModellingjulia> @model RBC_delayed begin 1 / c[0] = (β / c[1]) * (α * exp(z[1]) * k[0]^(α - 1) + (1 - δ)) c[0] + k[0] = (1 - δ) * k[-1] + q[0] q[0] = exp(z[0]) * k[-1]^α z[0] = ρᶻ * z[-1] + σᶻ * ϵᶻ[x] endModel: RBC_delayed Variables Total: 4 Auxiliary: 0 States: 2 Auxiliary: 0 Jumpers: 2 Auxiliary: 0 Shocks: 1 Parameters: 5
but in the parameter definition only the calibration equations and parameters defined as functions of other parameters are defined, so in this case we can leave it empty:
julia> @parameters RBC_delayed begin end┌ Warning: Model has been set up with incomplete parameter definitions. Missing parameters: [:α, :β, :δ, :ρᶻ, :σᶻ]. The non-stochastic steady state and perturbation solution cannot be computed until all parameters are defined. Provide missing parameter values via the `parameters` keyword argument in functions like `get_irf`, `get_SS`, `simulate`, etc. └ @ Main ~/work/MacroModelling.jl/MacroModelling.jl/src/macros.jl:1670 Model: RBC_delayed Variables Total: 4 Auxiliary: 0 States: 2 Auxiliary: 0 Jumpers: 2 Auxiliary: 0 Shocks: 1 Parameters: 5 Missing: 5
the package warns that the model has been set up with incomplete parameter definitions and provides the missing parameters.
We can then provide the missing parameters when calling functions that accept the parameters argument, for example to retrieve IRFs:
julia> get_irf(RBC_delayed, parameters = (:σᶻ => 0.01, :ρᶻ => 0.2, :δ => 0.02, :α => 0.5, :β => 0.95))Remove redundant variables in non-stochastic steady state problem: 0.055 seconds Set up non-stochastic steady state problem: 0.113 seconds Take symbolic derivatives up to first order: 0.016 seconds 3-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 4-element Vector{Symbol} → Periods ∈ 40-element UnitRange{Int64} ◪ Shocks ∈ 1-element Vector{Symbol} And data, 4×40×1 Array{Float64, 3}: [:, :, 1] ~ (:, :, :ϵᶻ): (1) (2) … (39) (40) (:c) 0.00674687 0.00729773 0.00146962 0.00140619 (:k) 0.0620937 0.0718322 0.0146789 0.0140453 (:q) 0.0688406 0.0182781 0.00111425 0.00106615 (:z) 0.01 0.002 2.74878e-29 5.49756e-30
Note that only now that all parameters have been defined the package can attempt to solve the model. The steady state problem and derivatives are taken only once all missing parameters have been provided, as the order of the parameters follows declaration order. This functionality effectively allows to load parameter values from an external source (e.g. a CSV file) and pass them to the model without having to redefine the model.
Plot impulse response functions (IRFs)
A useful output to analyse are IRFs for the exogenous shocks. Calling plot_irf (different names for the same function are also supported: plot_irfs, or plot_IRF) will take care of this. Note that the StatsPlots package needs to be imported once before the first plot. In the background the package solves (symbolically in this simple case) for the non-stochastic steady state (SS) and calculates the first order perturbation solution.
julia> import StatsPlotsjulia> plot_irf(RBC)1-element Vector{Any}: Plot{Plots.GRBackend() n=8}
When the model is solved the first time (in this case by calling plot_irf), the package breaks down the steady state problem into independent blocks and first attempts to solve them symbolically and if that fails numerically.

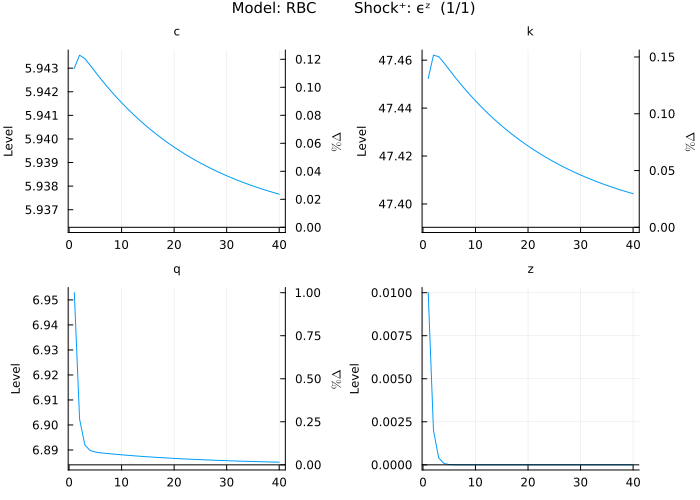

The plot shows the responses of the endogenous variables (c, k, q, and z) to a one standard deviation positive (indicated by Shock⁺ in chart title) unanticipated shock in eps_z. Therefore there are as many subplots as there are combinations of shocks and endogenous variables (which are impacted by the shock). Plots are composed of up to 9 subplots and the plot title shows the model name followed by the name of the shock and which plot is being displayed out of the plots for this shock (e.g. (1/3) means the first out of three plots for this shock is shown). Subplots show the sorted endogenous variables with the left y-axis showing the level of the respective variable and the right y-axis showing the percent deviation from the SS (if variable is strictly positive). The horizontal black line marks the SS.
Explore other parameter values
Experimenting with the model can be especially insightful in the early phase of development. The package facilitates this process as much as possible. Typically, users try different parameter values to see how the IRFs change. This can be done by using the parameters argument of the plot_irf function. Pass a Pair with the Symbol of the parameter (prefixed by :) and its new value to the parameter argument (for example :α => 0.3).
julia> plot_irf(RBC, parameters = :α => 0.3)1-element Vector{Any}: Plot{Plots.GRBackend() n=8}

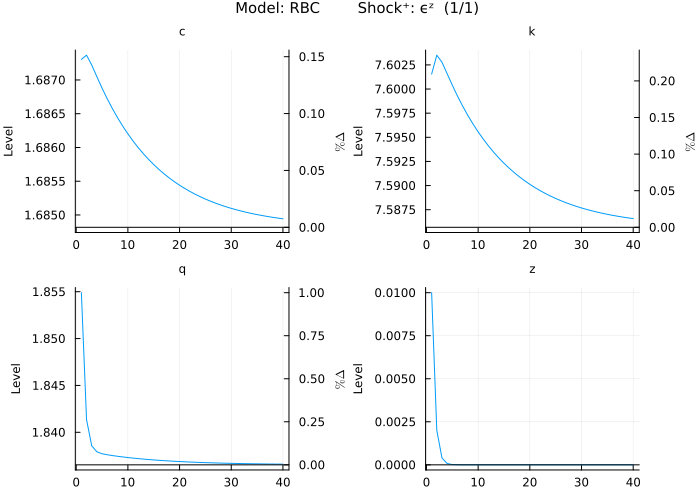

First, the package finds the new steady state, solves the model dynamics around it and saves the new parameters and solution in the model object. Second, note that the shape of the curves in the plot and the y-axis values changed. Updating the plot for new parameters is significantly faster than calling it the first time. This is because the first call triggers compilations of the model functions, and once compiled the user benefits from the performance of the specialised compiled code.
Plot model simulation
Another insightful output is simulations of the model. The plot_simulations function can be used here. Note that the StatsPlots package needs to be imported once before the first plot. To the same effect the plot_irf function can be used and in the shocks argument :simulate is specified to simulate the model and the periods argument set to 100.
julia> plot_simulations(RBC)1-element Vector{Any}: Plot{Plots.GRBackend() n=8}

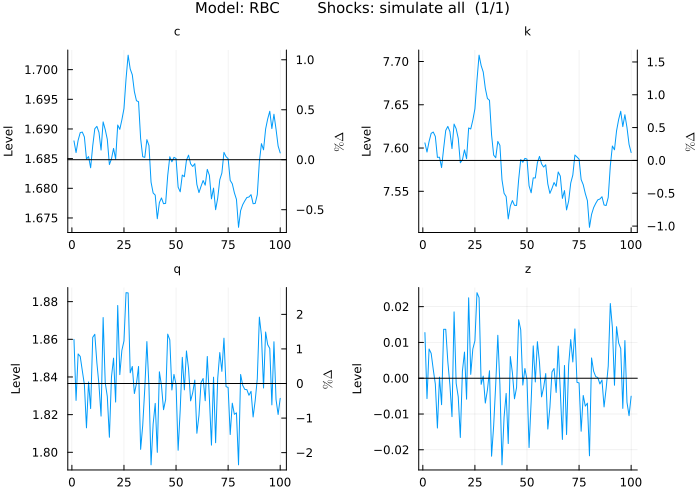

The plots show the models endogenous variables in response to random draws for all exogenous shocks over 100 periods.
Plot specific series of shocks
To examine a specific series of shocks and the resulting responses of the endogenous variables, pass a Matrix or a KeyedArray (the KeyedArray type is provided by the AxisKeys package) containing the shock series to the shocks argument of the plot_irf function:
julia> shock_series = zeros(1,4)1×4 Matrix{Float64}: 0.0 0.0 0.0 0.0julia> shock_series[1,2] = 11julia> shock_series[1,4] = -1-1julia> plot_irf(RBC, shocks = shock_series)1-element Vector{Any}: Plot{Plots.GRBackend() n=8}
The plot shows the two shocks hitting the economy in periods 2 and 4 and then continues the simulation for 40 more quarters.
Model statistics
The package solves for the SS automatically and the SS values can be seen in the plots. To see the SS values get_steady_state can be called:
julia> get_steady_state(RBC)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables_and_calibrated_parameters ∈ 4-element Vector{Symbol} → Steady_state_and_∂steady_state∂parameter ∈ 6-element Vector{Symbol} And data, 4×6 Matrix{Float64}: (:Steady_state) (:σᶻ) (:ρᶻ) (:δ) (:α) (:β) (:c) 1.68482 0.0 0.0 -15.4383 6.77814 8.70101 (:k) 7.58567 0.0 0.0 -149.201 58.0802 165.319 (:q) 1.83653 0.0 0.0 -10.8367 7.93974 12.0074 (:z) 0.0 0.0 0.0 0.0 0.0 0.0
to get the SS and the derivatives of the SS with respect to the model parameters. The first column of the returned matrix shows the SS while the second to last columns show the derivatives of the SS values (indicated in the rows) with respect to the parameters (indicated in the columns). For example, the derivative of k with respect to β is 165.319. This means that if β is increased by 1, k would increase by 165.319 approximately. How this plays out can be seen by changing β from 0.95 to 0.951 (a change of +0.001):
julia> get_steady_state(RBC,parameters = :β => .951)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables_and_calibrated_parameters ∈ 4-element Vector{Symbol} → Steady_state_and_∂steady_state∂parameter ∈ 6-element Vector{Symbol} And data, 4×6 Matrix{Float64}: (:Steady_state) (:σᶻ) (:ρᶻ) (:δ) (:α) (:β) (:c) 1.69358 0.0 0.0 -15.7336 6.85788 8.82312 (:k) 7.75393 0.0 0.0 -154.87 59.6114 171.24 (:q) 1.84866 0.0 0.0 -11.077 8.05011 12.2479 (:z) 0.0 0.0 0.0 0.0 0.0 0.0
Note that get_steady_state like all other get functions has the parameters argument. Hence, for whatever output is being examined the parameters of the model can be changed.
The new value of β changed the SS as expected and k increased by 0.168. The elasticity (0.168/0.001) comes close to the partial derivative previously calculated. The derivatives help understanding the effect of parameter changes on the steady state and make for easier navigation of the parameter space.
Standard deviations
Next to the SS the model implied standard deviations of the model can also be displayed. get_standard_deviation takes care of this. Additionally the parameter values will be set to what they were in the beginning by passing on a Tuple of Pairs containing the Symbols of the parameters to be changed and their new (initial) values (e.g. (:α => 0.5, :β => .95)).
julia> get_standard_deviation(RBC, parameters = (:α => 0.5, :β => .95))2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 4-element Vector{Symbol} → Standard_deviation_and_∂standard_deviation∂parameter ∈ 6-element Vector{Symbol} And data, 4×6 Matrix{Float64}: (:Standard_deviation) (:σᶻ) … (:δ) (:α) (:β) (:c) 0.0266642 2.66642 -0.384359 0.2626 0.144789 (:k) 0.264677 26.4677 -5.74194 2.99332 6.30323 (:q) 0.0739325 7.39325 -0.974722 0.726551 1.08 (:z) 0.0102062 1.02062 0.0 0.0 0.0
The function returns the model implied standard deviations of the model variables and their derivatives with respect to the model parameters. For example, the derivative of the standard deviation of c with resect to δ is -0.384. In other words, the standard deviation of c decreases with increasing δ.
Correlations
Another useful statistic is the model implied correlation of variables. get_correlation is used for this:
julia> get_correlation(RBC)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 4-element Vector{Symbol} → 𝑉𝑎𝑟𝑖𝑎𝑏𝑙𝑒𝑠 ∈ 4-element Vector{Symbol} And data, 4×4 Matrix{Float64}: (:c) (:k) (:q) (:z) (:c) 1.0 0.999812 0.550168 0.314562 (:k) 0.999812 1.0 0.533879 0.296104 (:q) 0.550168 0.533879 1.0 0.965726 (:z) 0.314562 0.296104 0.965726 1.0
Autocorrelations
Last but not least, the model implied autocorrelations of model variables can be examined using the get_autocorrelation function:
julia> get_autocorrelation(RBC)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 4-element Vector{Symbol} → Autocorrelation_periods ∈ 5-element UnitRange{Int64} And data, 4×5 Matrix{Float64}: (1) (2) (3) (4) (5) (:c) 0.966974 0.927263 0.887643 0.849409 0.812761 (:k) 0.971015 0.931937 0.892277 0.853876 0.817041 (:q) 0.32237 0.181562 0.148347 0.136867 0.129944 (:z) 0.2 0.04 0.008 0.0016 0.00032
Model solution
A further insightful output are the policy and transition functions of the first order perturbation solution. To retrieve the solution the function get_solution can be called:
julia> get_solution(RBC)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Steady_state__States__Shocks ∈ 4-element Vector{Symbol} → Variables ∈ 4-element Vector{Symbol} And data, 4×4 adjoint(::Matrix{Float64}) with eltype Float64: (:c) (:k) (:q) (:z) (:Steady_state) 5.93625 47.3903 6.88406 0.0 (:k₍₋₁₎) 0.0957964 0.956835 0.0726316 0.0 (:z₍₋₁₎) 0.134937 1.24187 1.37681 0.2 (:ϵᶻ₍ₓ₎) 0.00674687 0.0620937 0.0688406 0.01
The solution provides information about how past states and present shocks impact present variables. The first row contains the SS for the variables denoted in the columns. The second to last rows contain the past states, with the time index ₍₋₁₎, and present shocks, with exogenous variables denoted by ₍ₓ₎. For example, the immediate impact of a shock to eps_z on q is 0.0688.
There is also the possibility to visually inspect the solution. Note that the StatsPlots package needs to be imported once before the first plot. The plot_solution function can be used:
julia> plot_solution(RBC, :k)1-element Vector{Any}: Plot{Plots.GRBackend() n=8}

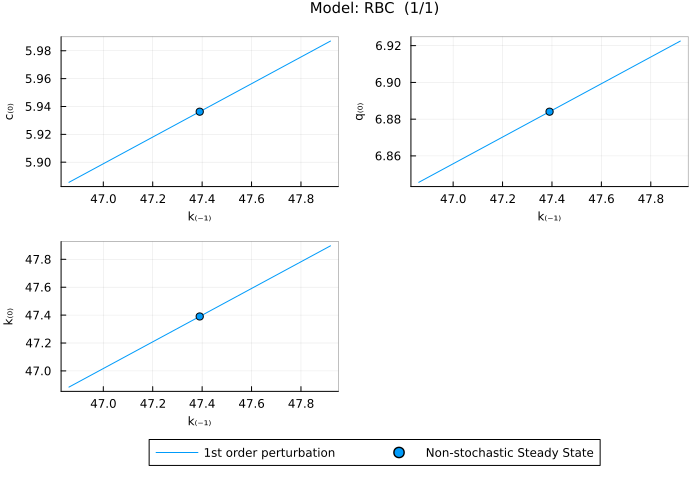

The chart shows the first order perturbation solution mapping from the past state k to the present variables of the model. The state variable covers a range of two standard deviations around the non-stochastic steady state and all other states remain in the non-stochastic steady state.
Obtain array of IRFs or model simulations
Last but not least simulated time series of the model or IRFs might be of interest without plotting them. For IRFs this is possible by calling get_irf:
julia> get_irf(RBC)3-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 4-element Vector{Symbol} → Periods ∈ 40-element UnitRange{Int64} ◪ Shocks ∈ 1-element Vector{Symbol} And data, 4×40×1 Array{Float64, 3}: [:, :, 1] ~ (:, :, :ϵᶻ): (1) (2) … (39) (40) (:c) 0.00674687 0.00729773 0.00146962 0.00140619 (:k) 0.0620937 0.0718322 0.0146789 0.0140453 (:q) 0.0688406 0.0182781 0.00111425 0.00106615 (:z) 0.01 0.002 2.74878e-29 5.49756e-30
which returns a 3-dimensional KeyedArray (provided by the AxisKeys package) with variables (absolute deviations from the relevant steady state by default) in rows, the period in columns, and the shocks as the third dimension.
For simulations this is possible by calling simulate:
julia> simulate(RBC)3-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 4-element Vector{Symbol} → Periods ∈ 40-element UnitRange{Int64} ◪ Shocks ∈ 1-element Vector{Symbol} And data, 4×40×1 Array{Float64, 3}: [:, :, 1] ~ (:, :, :simulate): (1) (2) … (39) (40) (:c) 5.93297 5.92566 5.93464 5.93804 (:k) 47.36 47.2905 47.3736 47.4054 (:q) 6.85054 6.8033 6.88979 6.91736 (:z) -0.00486849 -0.0114124 0.00109185 0.00501358
which returns the simulated data in levels in a 3-dimensional KeyedArray (provided by the AxisKeys package) of the same structure as for the IRFs.
Conditional forecasts
Conditional forecasting is a useful tool to incorporate for example forecasts into a model and then add shocks on top.
For example the model dynamics might be of interest given a path for c for the first 4 quarters and the next quarter a negative shock to eps_z arrives. This can be implemented using the get_conditional_forecast function and visualised with the plot_conditional_forecast function.
First, the conditions on the endogenous variables are defined as deviations from the non-stochastic steady state (c in this case) using a KeyedArray from the AxisKeys package (check get_conditional_forecast for other ways to define the conditions):
julia> using AxisKeysjulia> conditions = KeyedArray(Matrix{Union{Nothing,Float64}}(undef,1,4),Variables = [:c], Periods = 1:4)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables ∈ 1-element Vector{Symbol} → Periods ∈ 4-element UnitRange{Int64} And data, 1×4 Matrix{Union{Nothing, Float64}}: (1) (2) (3) (4) (:c) nothing nothing nothing nothingjulia> conditions[1:4] .= [-.01,0,.01,.02];
Note that all other endogenous variables not part of the KeyedArray (provided by the AxisKeys package) are also not conditioned on.
Next, the conditions on the shocks (eps_z in this case) are defined using a SparseArrayCSC from the SparseArrays package (check get_conditional_forecast for other ways to define the conditions on the shocks):
julia> using SparseArraysjulia> shocks = spzeros(1,5)1×5 SparseArrays.SparseMatrixCSC{Float64, Int64} with 0 stored entries: ⋅ ⋅ ⋅ ⋅ ⋅julia> shocks[1,5] = -1;
Note that for the first 4 periods the shock has no predetermined value and is determined by the conditions on the endogenous variables.
Finally the conditional forecast can be obtained:
julia> get_conditional_forecast(RBC, conditions, shocks = shocks, conditions_in_levels = false)2-dimensional KeyedArray(NamedDimsArray(...)) with keys: ↓ Variables_and_shocks ∈ 5-element Vector{Symbol} → Periods ∈ 45-element UnitRange{Int64} And data, 5×45 Matrix{Float64}: (1) (2) … (44) (45) (:c) -0.01 0.0 0.0023348 0.00223402 (:k) -0.0920334 -0.00691984 0.0233205 0.0223139 (:q) -0.102033 0.0832729 0.00177022 0.0016938 (:z) -0.0148217 0.0130675 -3.6669e-30 -7.3338e-31 (:ϵᶻ₍ₓ₎) -1.48217 1.60318 … 0.0 0.0
The function returns a KeyedArray (provided by the AxisKeys package) with the values of the endogenous variables and shocks matching the conditions exactly.
The conditional forecast can also be plotted. Note that the StatsPlots package needs to be imported once before the first plot. In order to plot this can be used:
julia> plot_conditional_forecast(RBC, conditions, shocks = shocks, conditions_in_levels = false)1-element Vector{Any}: Plot{Plots.GRBackend() n=13}
and conditions_in_levels = false needs to be set since the conditions are defined in deviations.

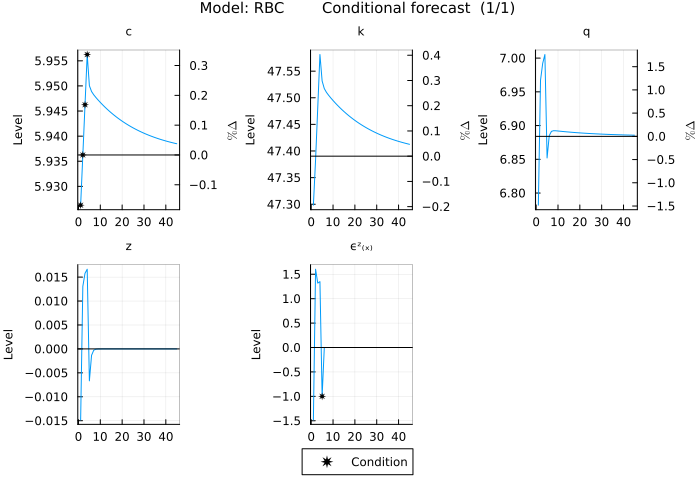

Note that the stars indicate the values the model is conditioned on.
